Surge Diverters-Din Rail & Enclosure With Integrated Leads 40kA – 200kA
Description and Features
Description

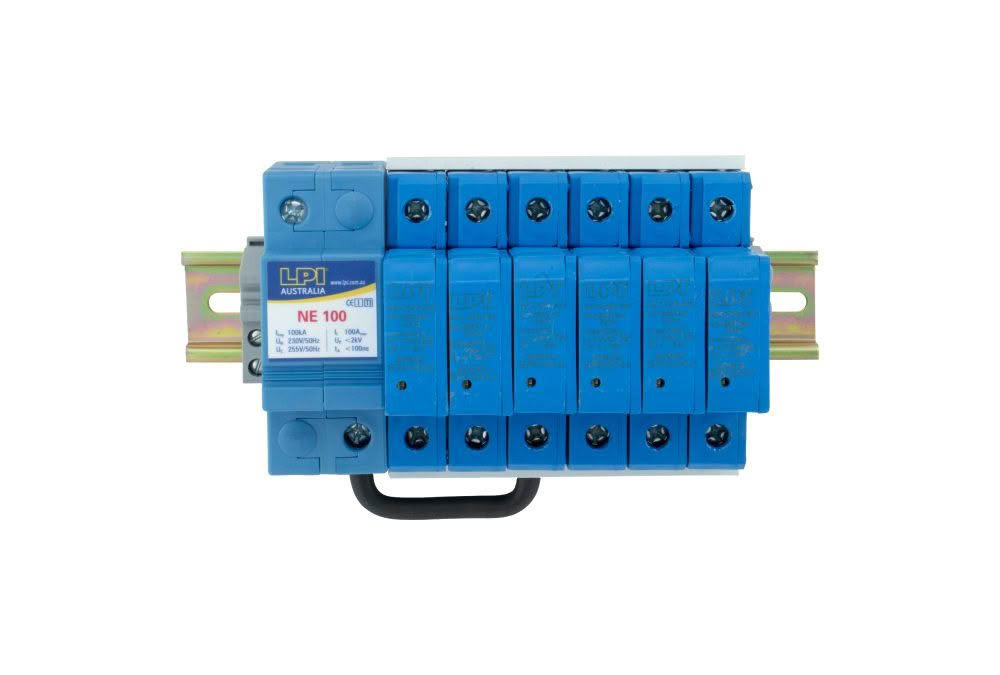

LPI’s DR series is available in both single and three-phase configurations, pre-wired and DIN-rail mounted for fast and easy installation. These units can be customised to suit specific kA rating requirements and include a dedicated Neutral to earth protection component and Alarm Interface module for remote alarm signals.
Request A Quote
Selectable variants
| Product Code | Description | Qty | Quote |
|---|---|---|---|
| LPINZ-1DR50KA-385-NE100 | DIN Mount 1 phase with L-N and NE, 50kA Protection 8/20 μs 385V Uc, with bluetooth |
|
|
| LPINZ-1DR50KA-385-NE100-AIMCB | DIN Mount 1 phase with L-N and NE, 50kA Protection 8/20 μs 385V Uc, with Bluetooth and Alarm module |
|
|
| LPINZ-1DR100KA-385-NE100 | DIN Mount 1 phase with L-N and NE, 100kA Protection 8/20 μs 385V Uc, with bluetooth |
|
|
| LPINZ-1DR100KA-385-NE100-AIMCB | DIN Mount 1 phase with L-N and NE, 100kA Protection 8/20 μs 385V Uc, with Bluetooth and Alarm module |
|
|
| LPINZ-1DR200KA-385-NE100 | DIN Mount 1 phase with L-N and NE, 200kA Protection 8/20 μs 385V Uc, with bluetooth |
|
|
| LPINZ-1DR200KA-385-NE100-AIMCB | DIN Mount 1 phase with L-N and NE, 200kA Protection 8/20 μs 385V Uc, with Bluetooth and Alarm module |
|
|
| LPINZ-3DR50KA-385-NE100 | DIN Mount 3 phase with L-N and NE, 50kA Protection 8/20 μs 385V Uc, with bluetooth |
|
|
| LPINZ-3DR50KA-385-NE100-AIMCB | DIN Mount 3 phase with L-N and NE, 50kA Protection 8/20 μs 385V Uc, with Bluetooth and Alarm module |
|
|
| LPINZ-3DR100KA-385-NE100 | DIN Mount 3 phase with L-N and NE, 100kA Protection 8/20 μs 385V Uc, with bluetooth |
|
|
| LPINZ-3DR100KA-385-NE100-AIMCB | DIN Mount 3 phase with L-N and NE, 100kA Protection 8/20 μs 385V Uc, with Bluetooth and Alarm module |
|
|
| LPINZ-3DR200KA-385-NE100 | DIN Mount 3 phase with L-N and NE, 200kA Protection 8/20 μs 385V Uc, with bluetooth |
|
|
| LPINZ-3DR200KA-385-NE100-AIMCB | DIN Mount 3 phase with L-N and NE, 200kA Protection 8/20 μs 385V Uc, with Bluetooth and Alarm module |
|
Available Documents
Extra Information
