Static Var Generators (SVG)
Static Var Generators (SVG) provide precise and reliable power factor correction for both unbalanced three-phase systems and installations with varying inductive or capacitive loads.
Static Var Generators (SVG)
Static Var Generators (SVG) provide precise and reliable power factor correction for both unbalanced three-phase systems and installations with varying inductive or capacitive loads.
Description and Features
Description
Features:
• Effectively perform power factor correction ( inductive/capacitive ) and phase balancing.
• Immune to harmonics

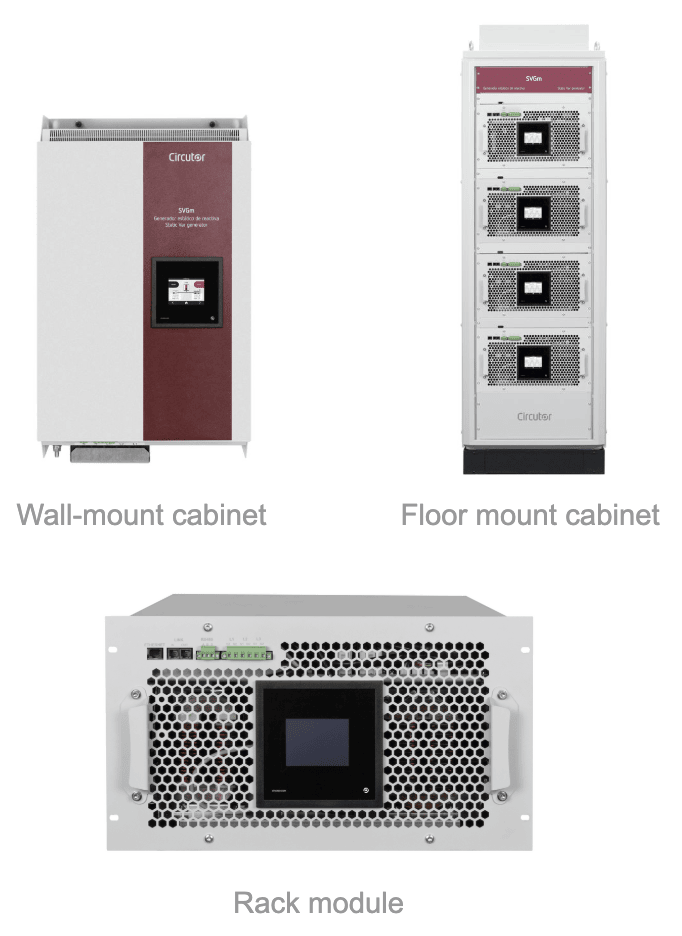

• Free-standing or wall-mount cabinets
• Scalable filtering capacity of up to 100 cabinets.
• No Capacitors or reactors, easy maintenance.
• Real-time monitoring with an integrated data logger having 5-7 years of data storage.
Typical applications include:
Industrial plants, commercial buildings, data centers, and facilities with rapidly changing or unbalanced loads, such as cranes, welding equipment, elevators, and shredding systems.
Request A Quote
Selectable variants
| Product Code | Description | Qty | Quote |
|---|---|---|---|

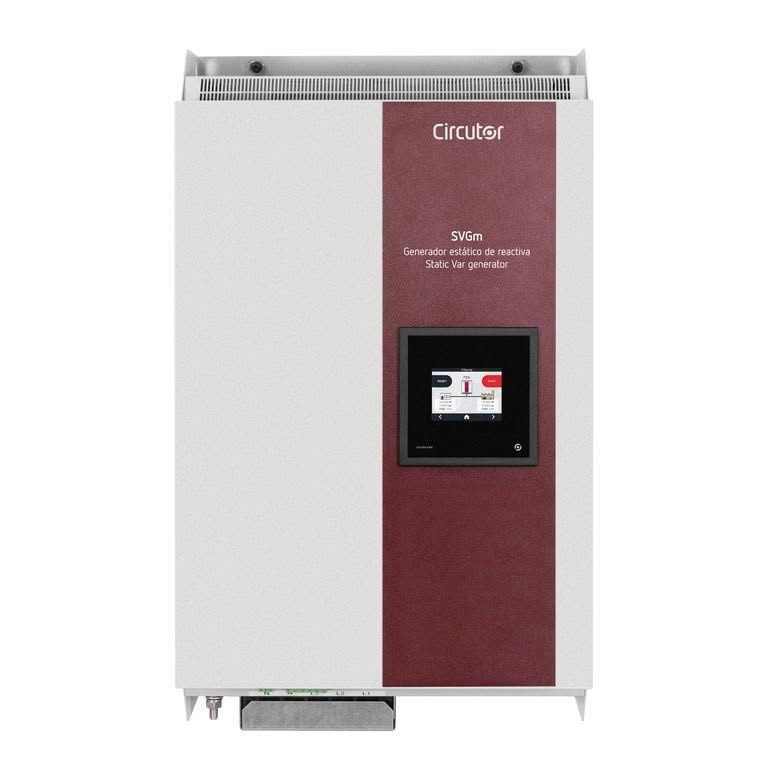

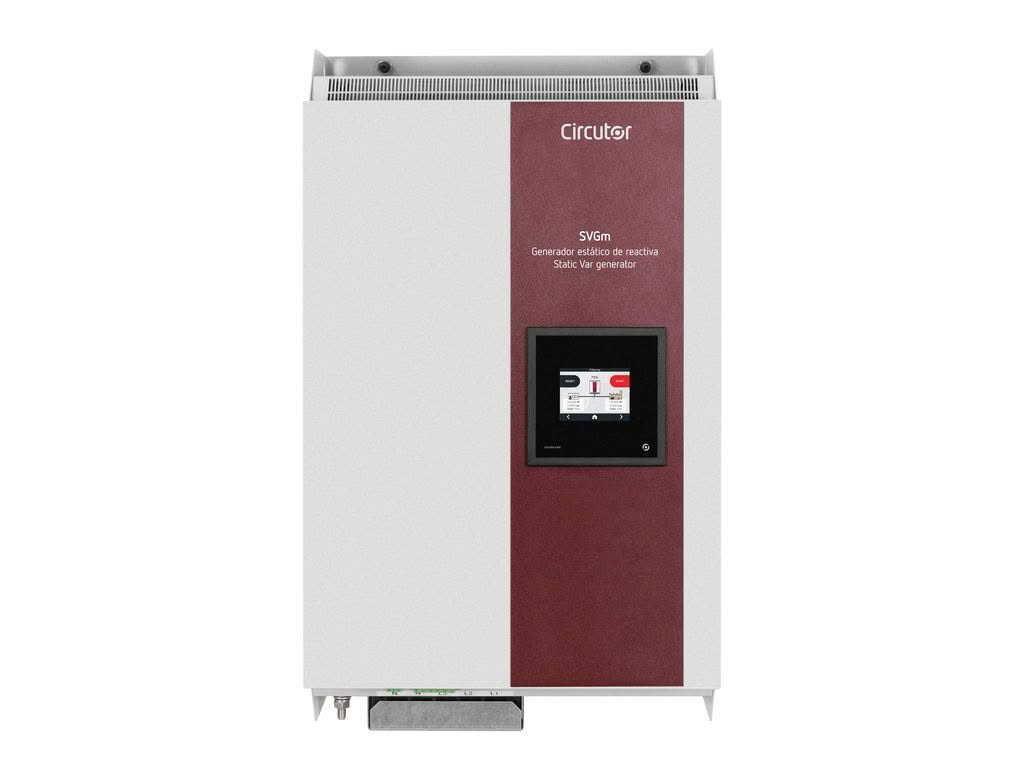

| LPINZ-SVGm-4WF-020M-400 | 20 kVAr- 4 wire wall mount static var generator, 400V |
|
|
| LPINZ-SVGm-4WF-050M-400 | 50 kVAr- 4 wire wall mount static var generator, 400V |
|
|
| LPINZ-SVGm-4WF-069M-400 | 69 kVAr- 4 wire wall mount static var generator, 400V |
|
|

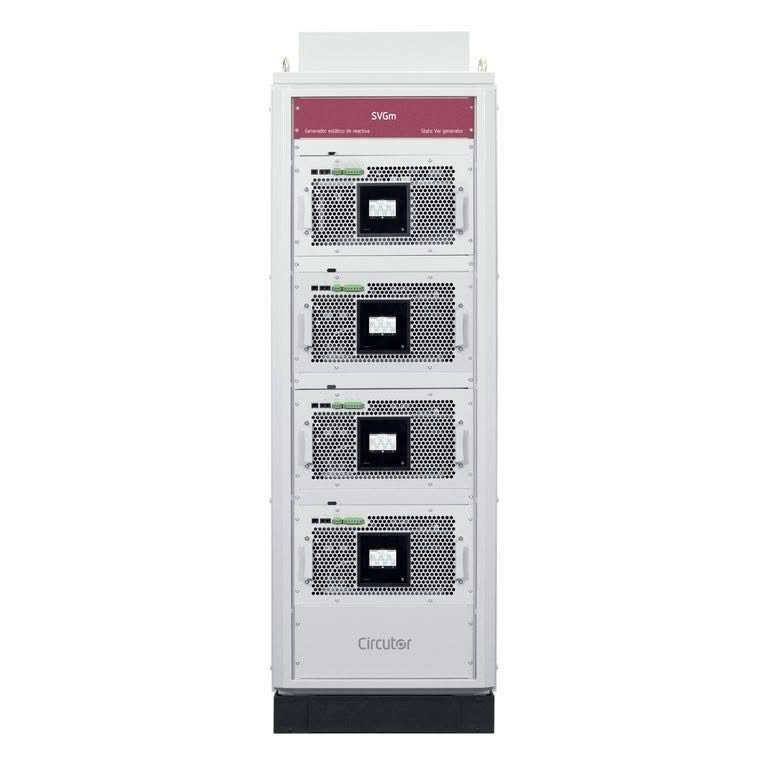

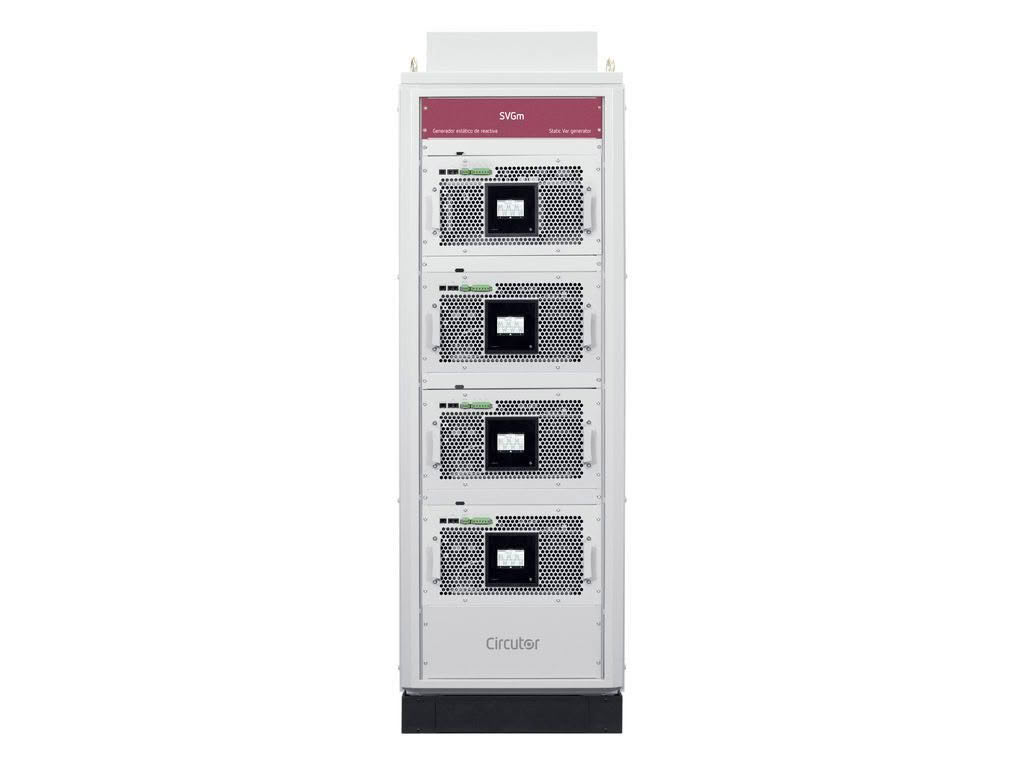

| LPINZ-SVGm-4WF-069C-400 | 69 kVAr- 4 wire floor mount static var generator, 400V |
|
|
| LPINZ-SVGm-4WF-138C-400 | 138 kVAr- 4 wire floor mount static var generator, 400V |
|
|
| LPINZ-SVGm-4WF-207C-400 | 207 kVAr- 4 wire floor mount static var generator, 400V |
|
|
| LPINZ-SVGm-4WF-276C-400 | 276 kVAr- 4 wire floor mount static var generator, 400V |
|
|

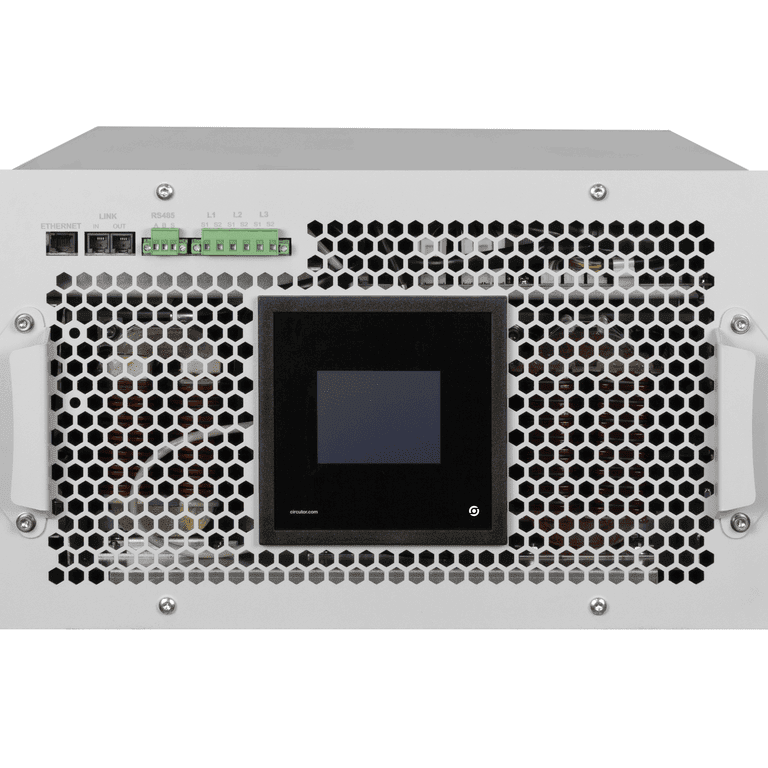

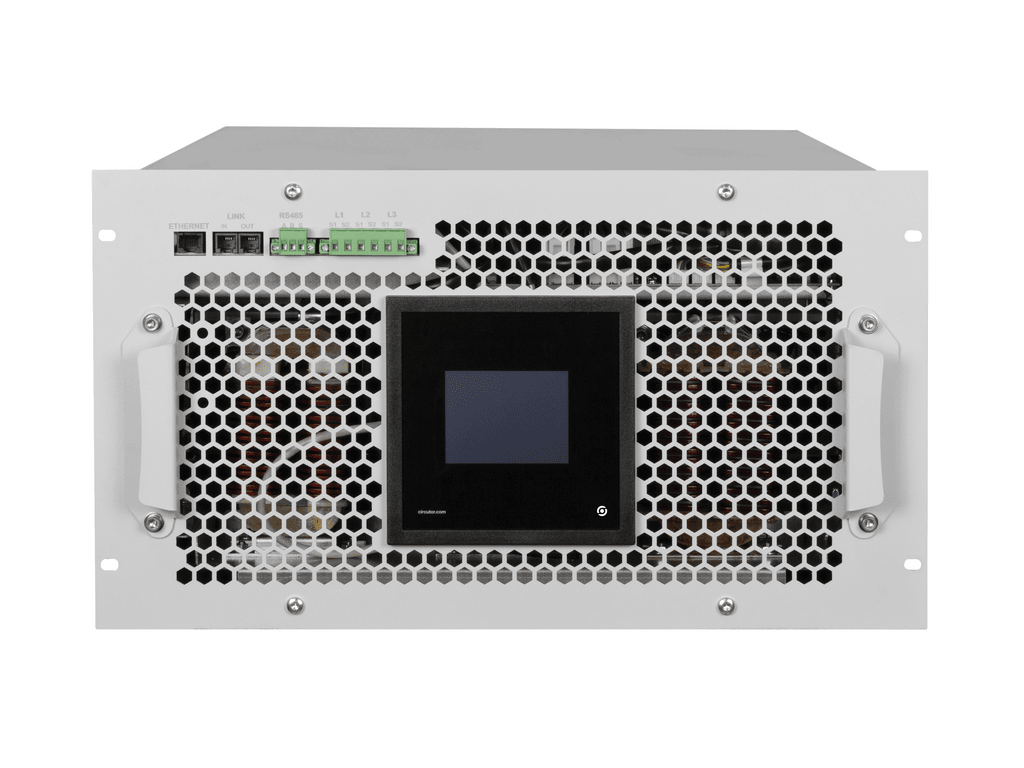

| LPINZ-SVGm-4WF-069R-400 | 69 kVAr - 4-wire static var generator rack module, 400V |
|
